JHTR5902 HAND CRIMP TOOL

PRODUCT SPECIFICATION

ATP-JHTR5902E

2005/03/31, Rev.- A

Molex Japan Co., Ltd.

1. Description

This tool is a hand crimp tool, which is designed for crimp-connecting a wire to crimp a terminal

of Molex.

Please take the time to read attached the operating manual (IS-0001) of Hand Crimp Tool,

making sure you understand the crimping procedures and management method described it

before attempting to operate this hand tool.

2. Specifications

1) Tool name:

2) Tool number:

3) Outer dimensions and weight:

4) Management method:

JHTR5902 Hand Crimp Tool

JHTR5902

230 (width) x 70 (depth) x 15 (thickness) mm, Approx. 400gf

Crimp strength (Details are described to the corresponding

crimp specification)

5) Applicable terminal and wires: Phi1.58mm Miniature Pin and Receptacle

Terminal number

5205

5206

5205

5206

Applicable wire size

(AWG)

#18

#16

#20x2

Applicable insulation

outer diameter (mm)

3.2

2.5

1.9x2

Wire insulation strip

length (mm)

2.7-3.3

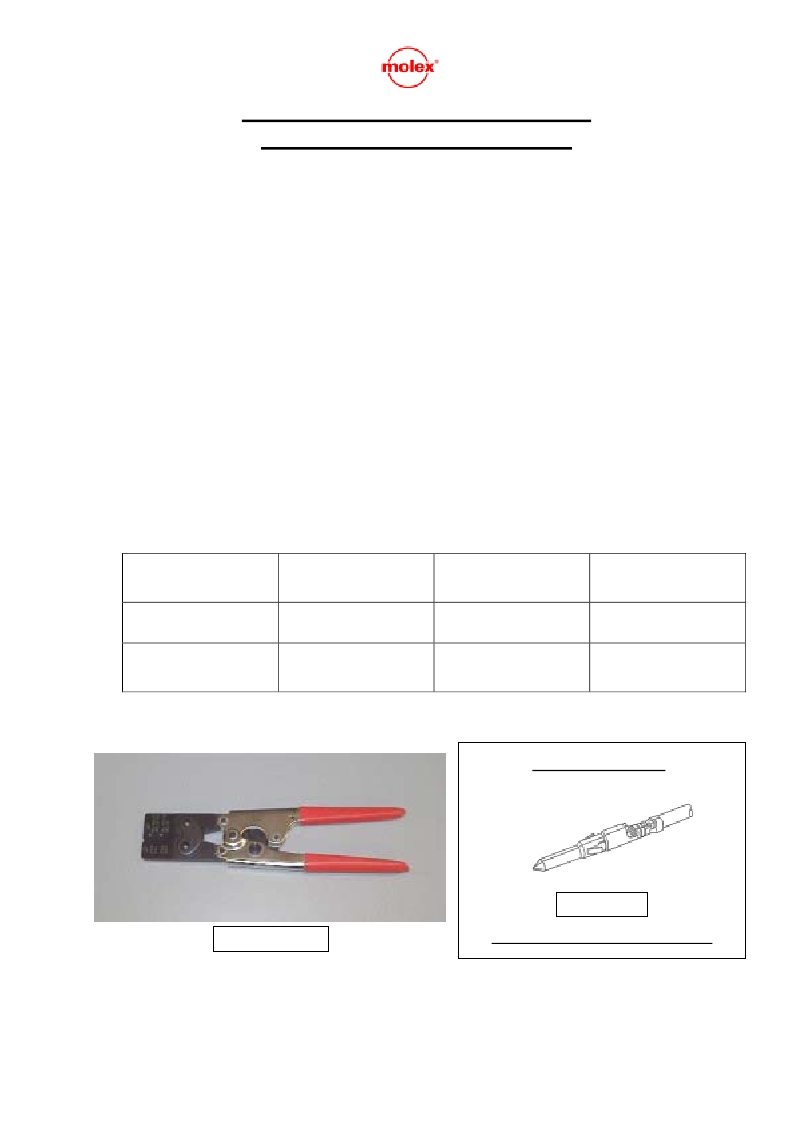

3. Tool Appearance

Applicable Terminal

5205, 5206

JHTR5902

Phi1.58mm Miniature Pin and Receptacle
